Fully HBN 00-10 Complaint
Fully HTM 64 Complaint

Full Height Fixed Cliniwash

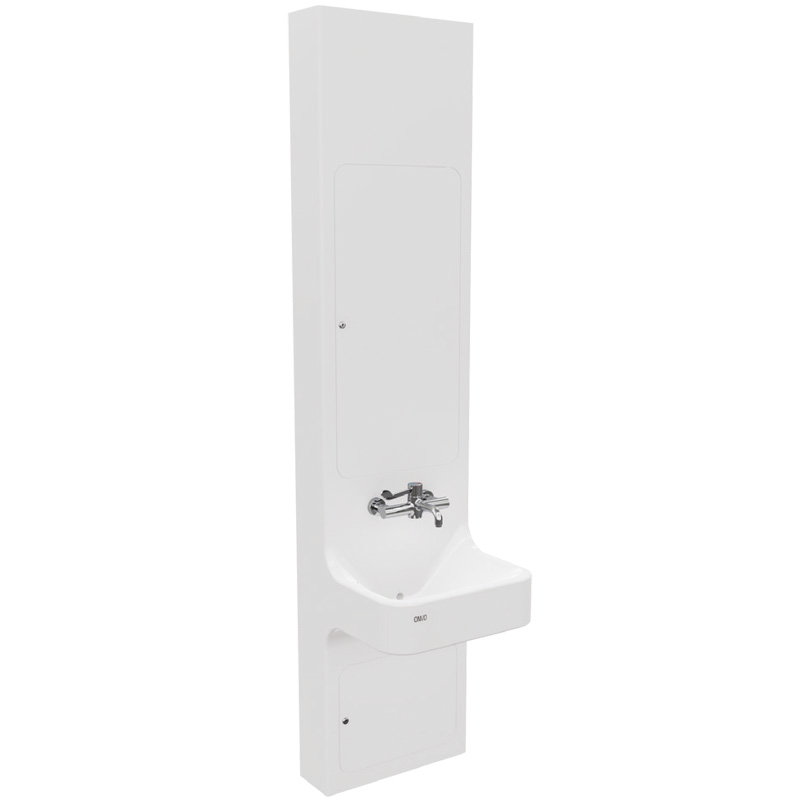

The ONVO Full Height Fixed Cliniwash is a floor to ceiling all in one IPS and Clinical basin solution. This is for situations where the pipework is coming from the ceiling down the face of the wall and requires concealing. All different ceiling heights can be catered for. Access to pipework/services is through two pivot hinged flush access doors above & below the basin.

CODE WIDTH HEIGHT DEPTH
618C/FHF 600mm 2.4-3.0m 604mm
610C/FHF 600mm 2.4-3.0m 525mm
518C/FHF 500mm 2.4-3.0m 562mm
510C/FHF 500mm 2.4-3.0m 482mm

Download Pack

Download the NBS specifications, CAD drawings, BIM objects and data sheet for this product.

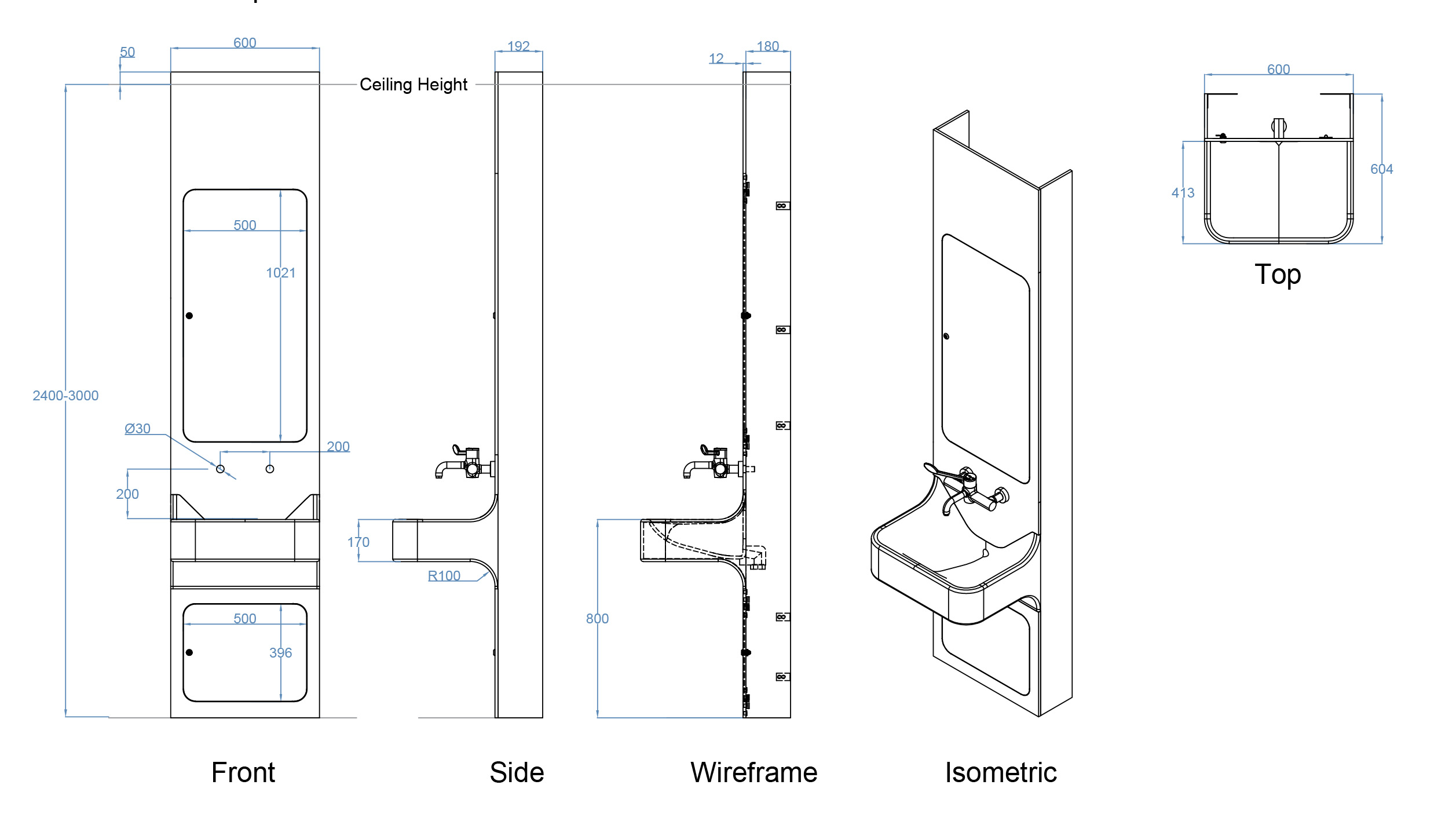

Technical Drawing: 600mm Wide | 180mm Deep

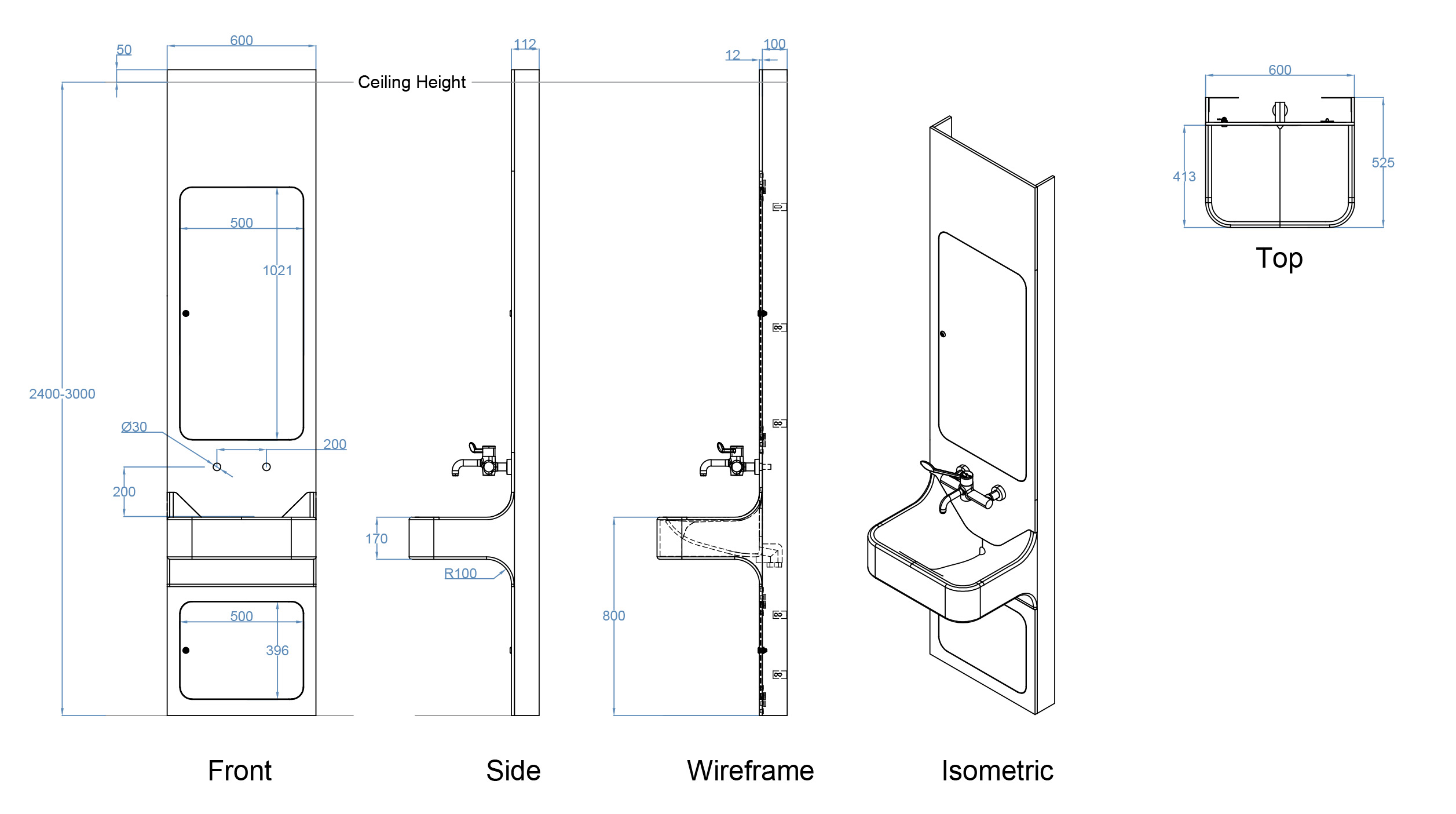

Technical Drawing: 600mm Wide | 100mm Deep

Technical Drawing: 500mm Wide | 180mm Deep

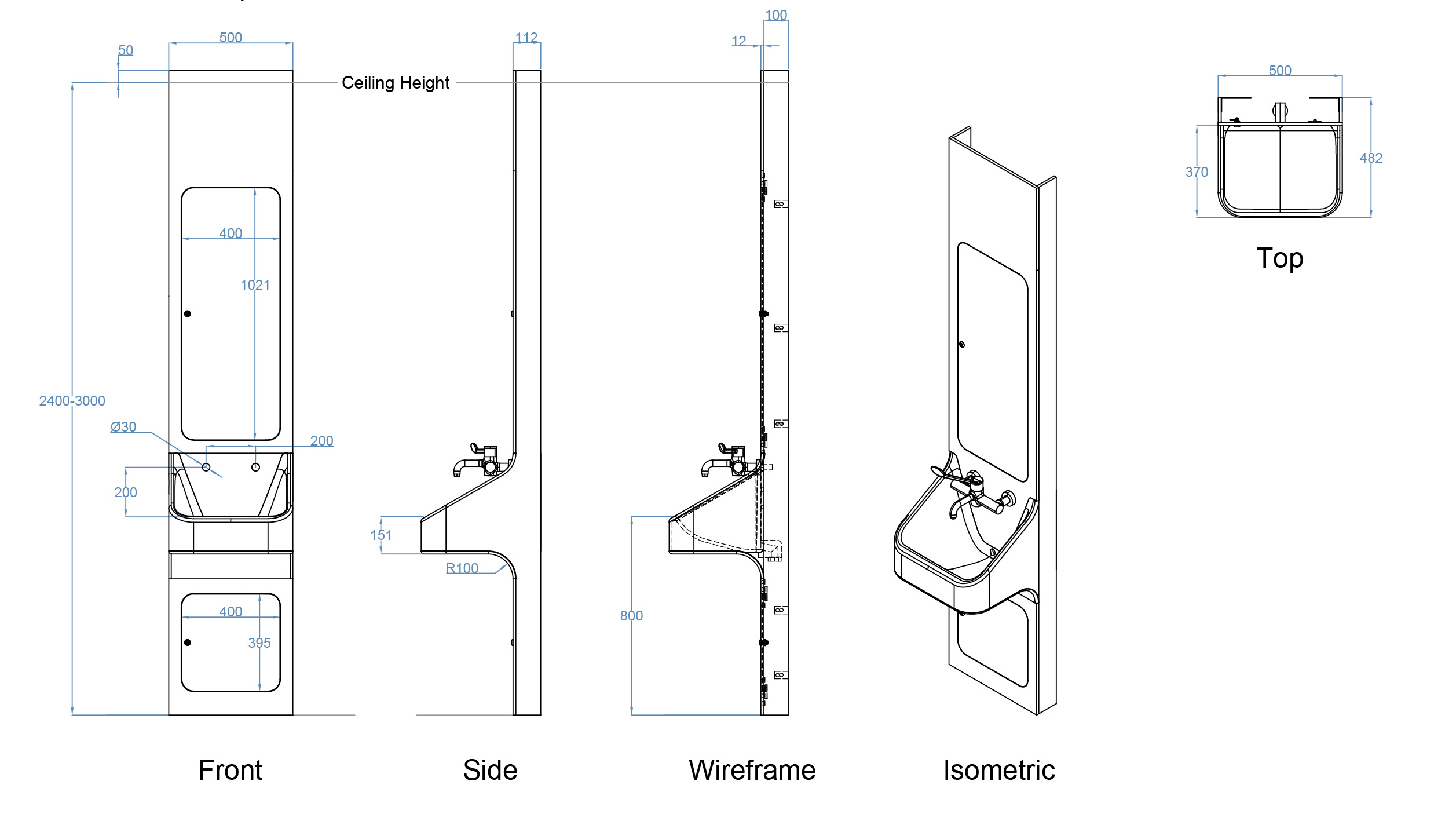

Technical Drawing: 500mm Wide | 100mm Deep
