Fully HBN 00-10 Complaint
Fully HTM 64 Complaint

Half Height Fixed Cliniwash

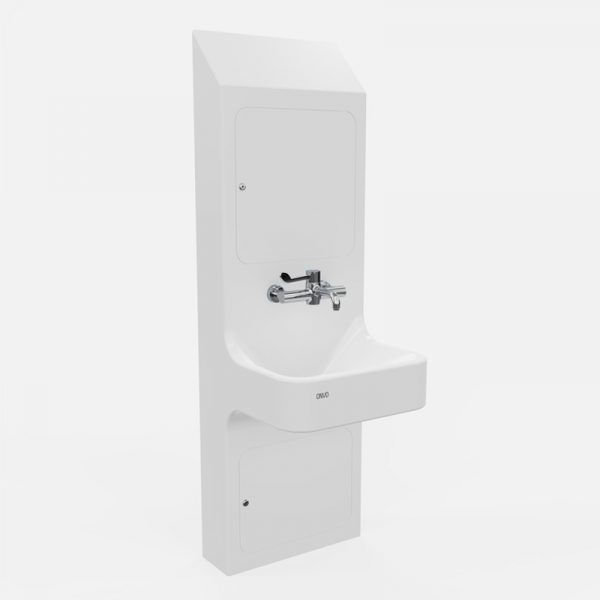

The ONVO Half Height Fixed Cliniwash is an 1800mm high all in one IPS and Clinical basin solution. This is for situations where there is space within the wall void to accommodate the pipework or where the pipework is coming from the floor and up the face of the wall. The 45 Degree angled top means there are no horizontal ledges and makes it easily wipeable. Access to pipework/services is through two pivot hinged flush access doors above & below the basin.

CODE WIDTH HEIGHT DEPTH
618C/HHF 600mm 1800m 604mm
610C/HHF 600mm 1800m 525mm
518C/HHF 500mm 1800m 562mm
510C/HHF 500mm 1800m 482mm

Download Pack

Download the NBS specifications, CAD drawings, BIM objects and data sheet for this product.

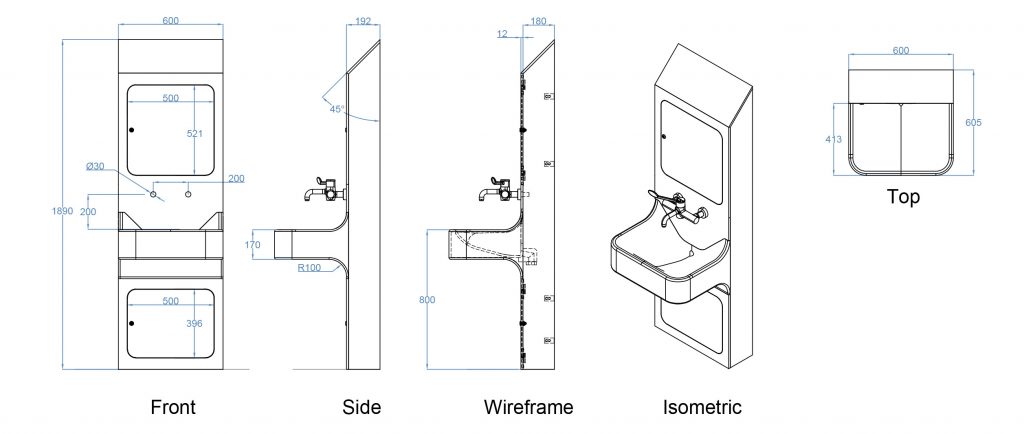

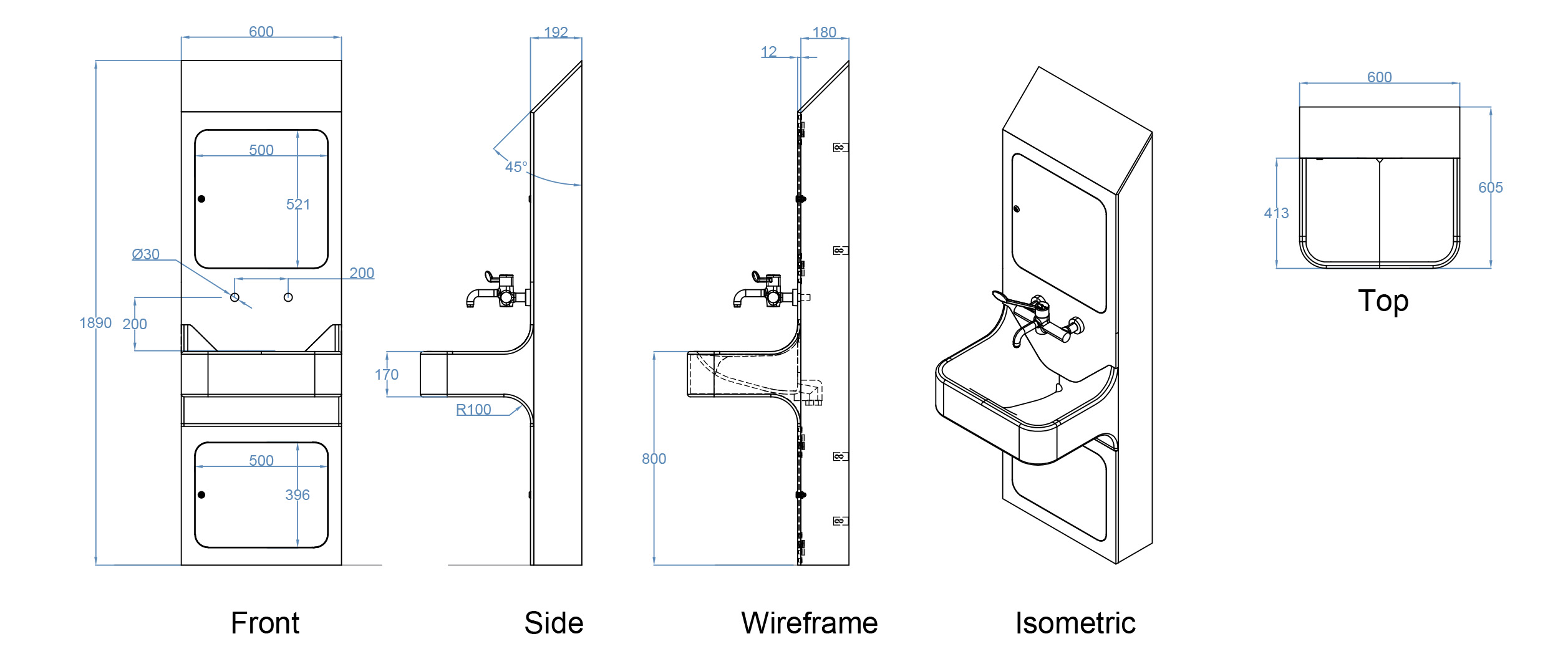

Technical Drawing: 600mm Wide | 180mm Deep

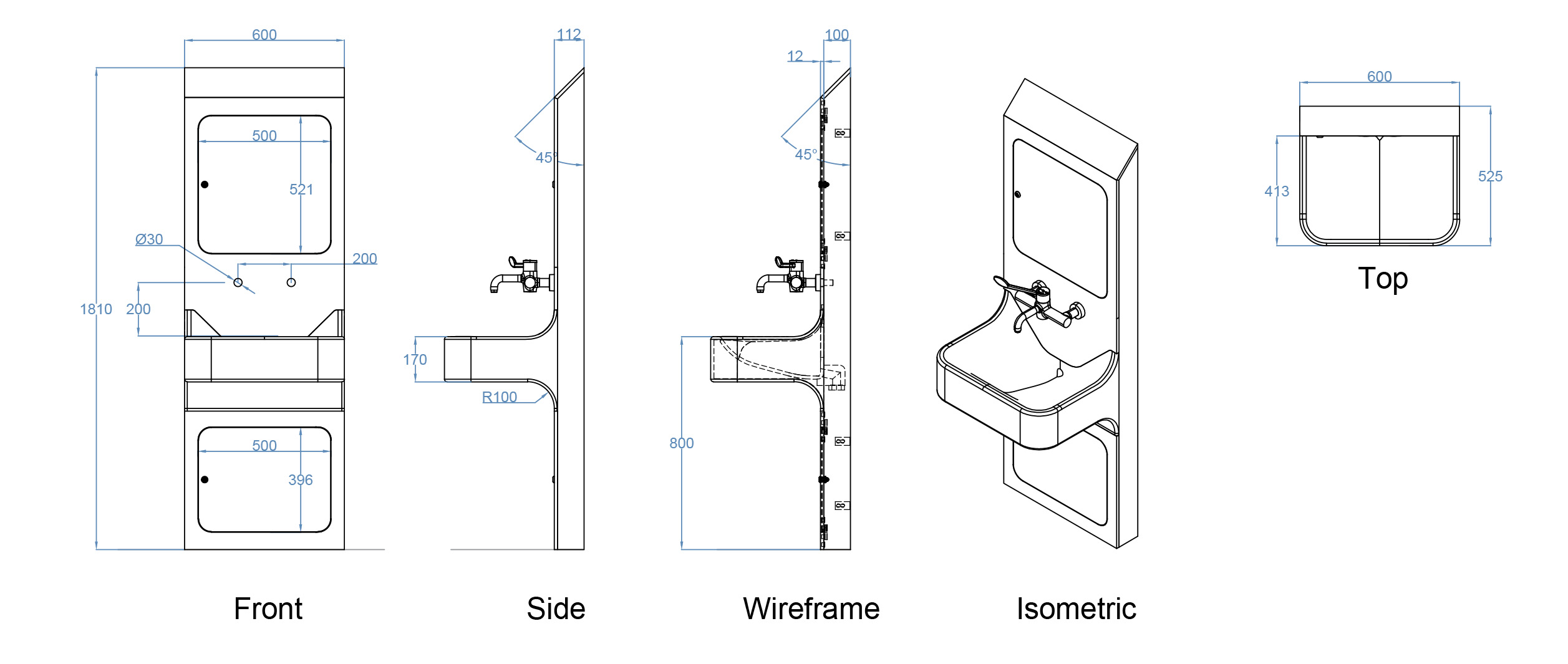

Technical Drawing: 600mm Wide | 100mm Deep

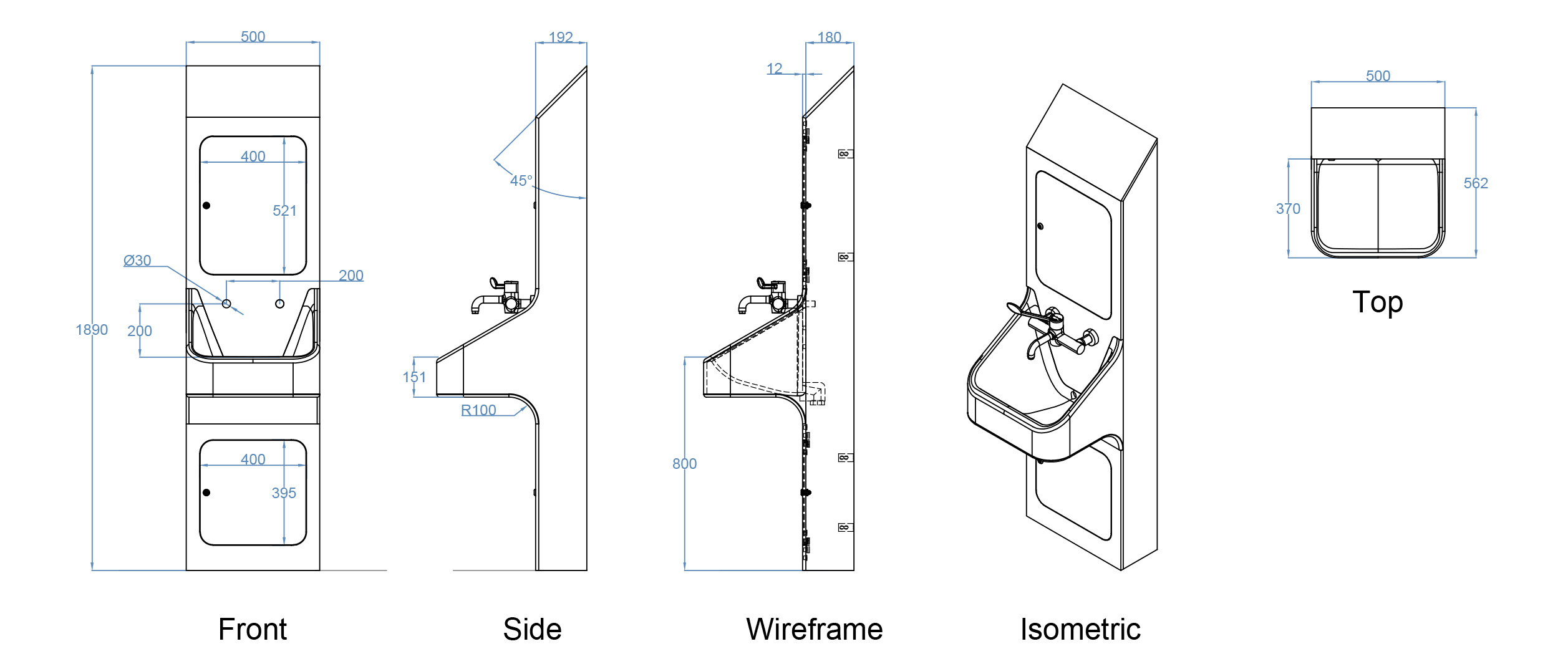

Technical Drawing: 500mm Wide | 180mm Deep

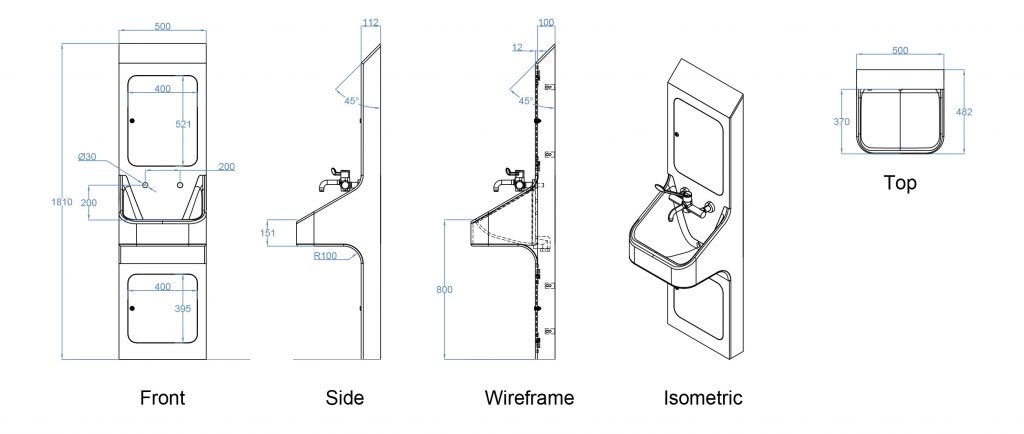

Technical Drawing: 500mm Wide | 100mm Deep
